Gas Freeing Fans

Victor Marine Gas Freeing Fan equipment, marketed under Victor Pyrate, is an established brand name when it comes to high quality and efficient marine equipment.

Developing and manufacturing Gas Freeing Fans for over 25 years, Victor Marine has a wealth of knowledge and experience in providing portable ventilation for VLCC’s to smaller Product Tankers and Chemical Carriers.

Victor Marine’s Gas Freeing Fan range offers both water driven and air driven fans, using unique design features which are considered the industry standard and include the following design features:

* Ultra-High performance water driven and air driven Gas Freeing Fans
* Uni-directional air flow- Supply or Extract mode by simple reversal
* Light weight easy “one-man operation” portable fan
* Available in High-Flow, Medium-flow and Low-flow throughput
* Fully Class Approved for use in “Anti Spark” Hazardous Areas
* Uses standard lay-flat hose with a selection of couplings
* Deck Connection flange to suit the standard 318mm diameter deck opening

_________________________________________________________________________________

VP1350 & VP800 Gas Freeing Fan

Offering either high or medium throughput these water driven gas freeing fans can produce up to 14,400m3/hr air displacement to reach depths of 30m below deck using its unique CFD (computational fluid dynamics) designed water turbine.

_________________________________________________________________________________

VP1500WS, VP1000WS & VP750WS Gas Freeing Fan

Offering high, medium and low flow throughput these water driven gas freeing fans can produce up to 14,800m3/hr air displacement to reach depths of 30m below deck using its unique CFD(computational fluid dynamics) designed water turbine.

_________________________________________________________________________________

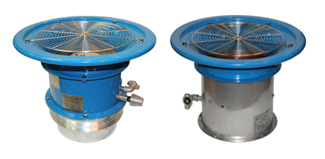

VP850A & VP950A Gas Freeing Fan

Air Driven, Deep Penetration Portable Gas Freeing Fans
Offering High, Medium and low flow throughput, these Air Driven Gas Freeing Fans can produce up to 9,2000m³/hr air displacement to reach depths of 25m below deck using its high quality air motor.

_________________________________________________________________________________

VP650A Gas Freeing Fan

High Performance, Deep Penetration, Air Driven Fan.
Constructed using high grade stainless steel. This non-sparking air driven gas freeing fan is designed to be lightweight and therefore extremely portable. The Lite is suitable for use on all types of vessels, particularly chemical and product tankers.

_________________________________________________________________________________

Victor Marine offers a range of Gas Freeing Fan Ancillaries to ensure longevity and ease of use for our complete Gas Freeing Fan range.

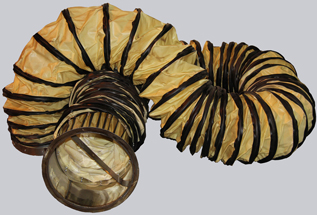

VP Air Ducting
Specially designed for marine use these are flame retardant, anti-static, heavy duty fabric ducting. Various galvanised mild steel or optional stainless steel flanges to suit deck opening and VP Gas Freeing Fan outlet ducts are freely available in many sizes Ex-Stock.

VP Air Ducting is available in 300mm ID for lengths up to 30m at multiples of 5m.

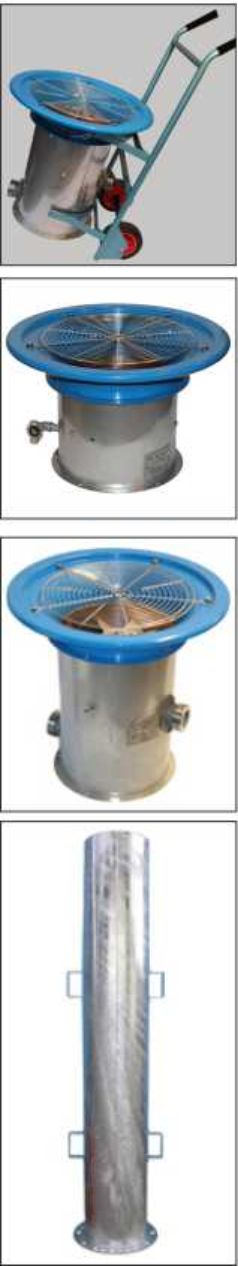

VP Fan Trolley
Victor Marine offer hose spanners to suit most couplings. Manufactured from lightweight tubular steel, this trolley is available to ease the transportation of the fans. Complete with durable wheels and a fan retaining strap for added protection.

VP Portable Vent Standpipes
These Standpipes are manufactured from durable galvanized mild steel to a height of 2 metres, specifying a discharge exit velocity of 30m/sec at 2 metres above deck and with use with either the VP1350W or VP1500WS Gas Freeing Fan. They comply with SOLAS chapter 59 paragraph 2 which specifies an exit velocity of 30m/s at 2m above the deck.

_________________________________________________________________________________

Victor Marine supplies a range of fan hoses and couplings offering both threaded and quick acting connections from stock. Most hoses can be assembled and tested for despatch within hours of an order being placed.

VP Layflat Hose – Red Heavy Duty Supply & Blue Medium Duty Exhaust
VP Lay Flat gas freeing fan hose is manufactured from woven polyester reinforced encased in polyurethane including internal and external liner. Available in two sizes of 38mm and 52mm (1½”, 2″,) ID with a minimum length of 10m to a maximum length of 30m at multiples of 5m.

VP Black Air Supply Hose
VP Air Supply Hose is manufactured from neoprene rubber reinforced with multiple rayon braid. Available in two sizes of 19mm and 25m (¾” & 1″) ID with a minimum length of 10m to a maximum length of 30m at multiples of 5m.

Available Connections
Victor Marine offers a full range of couplings to suit all our gas freeing hoses:
BSP Thread, Camlocks, Stortz, Nakajima, Butterworth, John Morris and many more.
Various double ended, Y-pieces and hot water line adaptors are available to ensure total connectivity.
Most connections are available from stock.

Hose Spanner

Victor Marine offer hose spanners to suit most couplings.
