Industrial Applications Overview


Rivertrace has the solution to your environmental monitoring needs.
Rivertrace can tailor make systems to your own individual requirements, such as
Boiler Water
Condensate Cooling Water
Produced Water
Discharge Water

__________________________________________________________________________________________________

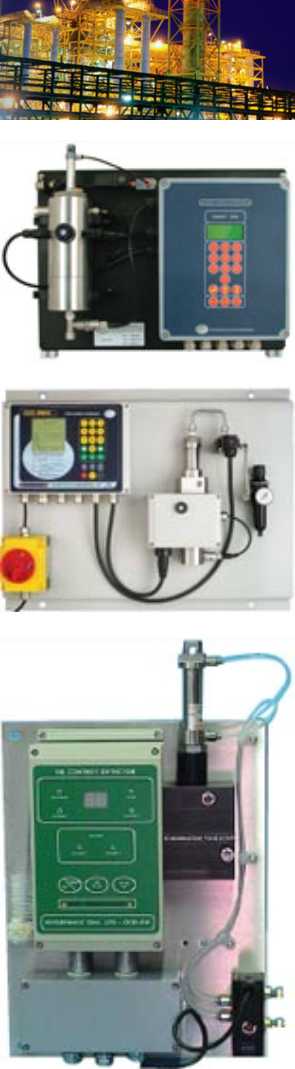

Smart 50M – Boiler Condensate / Cooling Water Monitor

Multiple optical sensors measures the combination of light absorbed and scattered by oil droplets in the sample stream. The sensor signals are read by a microprocessor which uses sophisticated algorithms to determine the concentration of oil and solids in the stream. The oil concentration is displayed on an alpha numeric display. A microprocessor drives a 4-20 mA current loop output which represents the concentration of oil. Two volt free alarms are driven when the oil concentration exceeds the set points. An Autoclean system is included to ensure the accuracy of the optical measuring system is maintained over extended periods of operation.

View technical details
Download spec sheet

__________________________________________________________________________________________________

OCD XTRA - OIL IN WATER ANALYSER


The “OCD Xtra” combines multiple light wavelengths with multiple sensor technology, to measure oil accurately in the range 0-200 ppm, even in the blackest of produced water. Multiple oil types are automatically compensated for by sophisticated algorithms. The multi-parameter display shows the sample's oil content, turbidity, pressure and a graphical average of the last 4 hours oil readings. The last 7 days readings are stored in ROM and can be accessed from the help menu. Full on screen help is available to guide the operator during set-up and maintenance routines.

View technical details
Download spec sheet

__________________________________________________________________________________________________

OCD CW OIL CONTENT MONITOR

The OCD CW is a low cost solution to simple cooling water monitoring applications. Designed for monitoring engine cooling water and fresh water systems. Boiler condensate can be also monitored with an optional cooler. With solids discrimination upto 50ppm the OCD CW provides repeatable accurate monitoring.


View technical details
Download spec sheet
